Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.\n
Slot	5x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G (Qty)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 1x USB 3.2 Gen2 Type C (Rear)
LAN	Realtek^® RTL8125BG 2.5G LAN
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	\n $\"\"$ \n \n DisplayPort \n 2.5G LAN \n USB 2.0 \n Audio Connectors \n HDMI™ \n USB 3.2 Gen 1 5Gbps (Type-A) \n USB 3.2 Gen 2 10Gbps (Type-C) \n S/PDIF-OUT \n \n
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
PCB Info	ATX 243.84mmx304.8mm
BOX CONTENT	$\"\"$

","image":["https://img.buymsieubusiness.shop/images/product/pro-b760-p-ddr4-ii-1.png","https://img.buymsieubusiness.shop/images/product/pro-b760-p-ddr4-ii-2.png","https://img.buymsieubusiness.shop/images/product/pro-b760-p-ddr4-ii-3.png","https://img.buymsieubusiness.shop/images/product/pro-b760-p-ddr4-ii-4.png","https://img.buymsieubusiness.shop/images/product/pro-b760-p-ddr4-ii-5.png"],"sku":"pro-b760-p-ddr4-ii","brand":{"@type":"Brand","name":"MSI EU Business e-Shop"},"offers":{"@type":"AggregateOffer","lowPrice":155.67,"highPrice":155.67,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://buymsieubusiness.shop/products/pro-b760-p-ddr4-ii","offerCount":1}}

Home Store

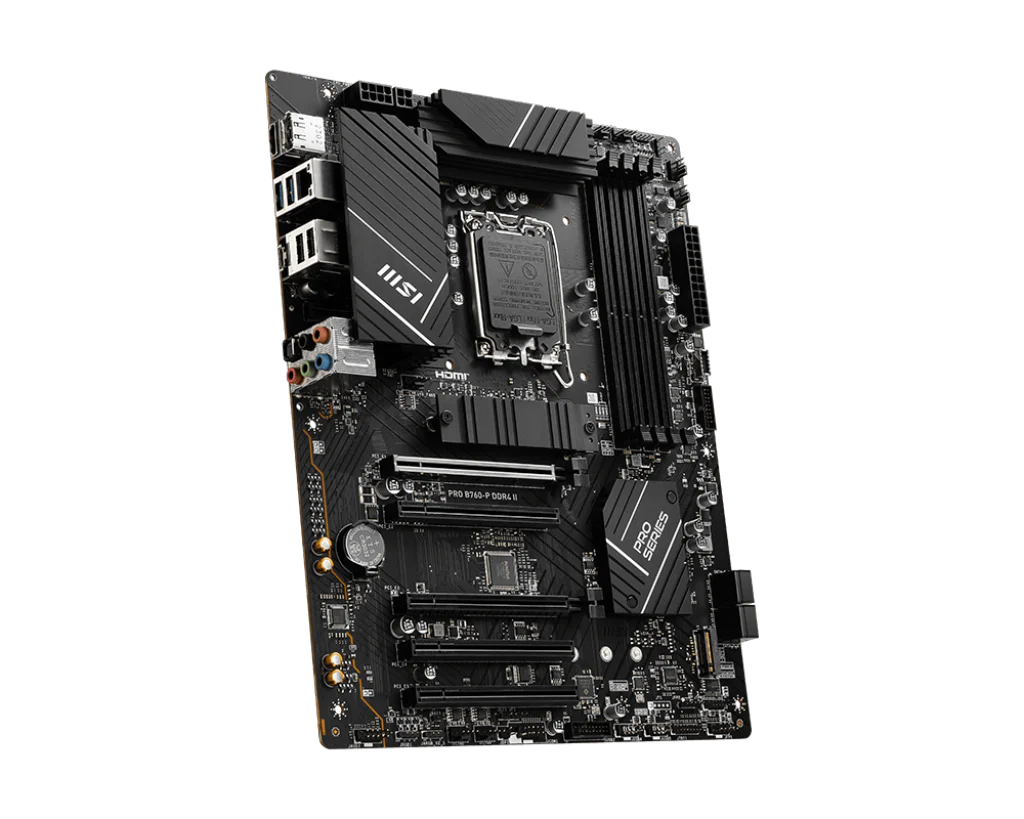

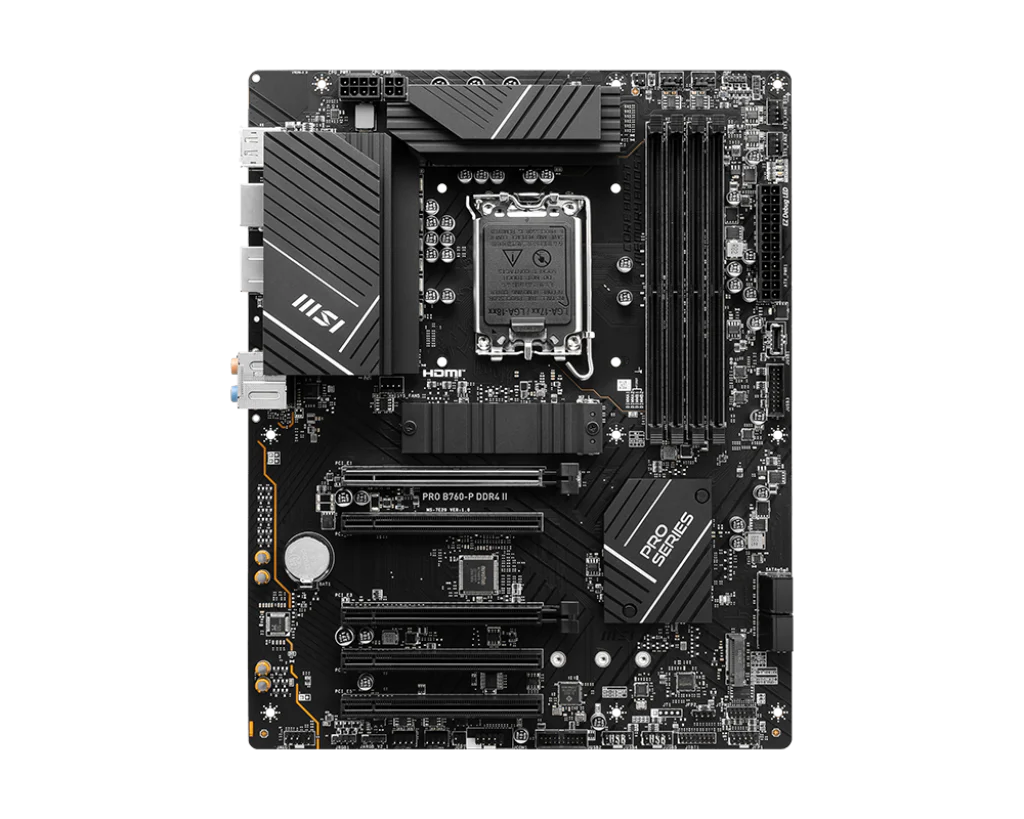

MSI Mainboard PRO B760-P DDR4 II

MSI Mainboard PRO B760-P DDR4 II

PRO B760-P DDR4 II

Unterstützt Intel^® Core™, Pentium^® Gold und Celeron^® Prozessoren der 12., 13. und 14. Generation für LGA 1700 Sockel
Unterstützt DDR4 Arbeitsspeicher, Dual Channel DDR4 5333+MHz (OC)
Verbessertes Leistungs-Design: 12+1 DRPS with P-PAK, 8-pin + 4-pin CPU Stromanschlüsse, Core Boost, Memory Boostt
Premium Kühlleistung: Erweiteter Kühlkörper, MOSFET-Wärmeleitpads, zusätzliche Drossel-Wärmeleitpads und M.2 Shield Frozr sind für ein Hochleistungssystem und Non-Stop-Gaming ausgelegt
Hochwertige Leiterplatte: 6 Schichten PCB, hergestellt aus 2oz dickem Kupfer und Material auf Server-Niveau
Blitzschnelles Gaming: PCIe 4.0 Steckplätze, Lightning Gen 4 x4 M.2
Intel Turbo USB 3.2 Gen 2: Der Intel USB 3.2 Gen2 Controller sorgt für unterbrechungsfreie Verbindungen mit mehr Stabilität und schnellsten USB-Geschwindigkeiten.
2.5G LAN: Hochmoderne Netzwerklösung für den professionellen und multimedialen Einsatz. Bietet eine sichere, stabile und schnelle Netzwerkverbindung
UDIO BOOST: Erlebe ein intensives Gaming-Erlebnis mit Sound in Studioqualität

Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	5x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G (Qty)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 1x USB 3.2 Gen2 Type C (Rear)
LAN	Realtek^® RTL8125BG 2.5G LAN
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
LED FEATURE	4x EZ Debug LED

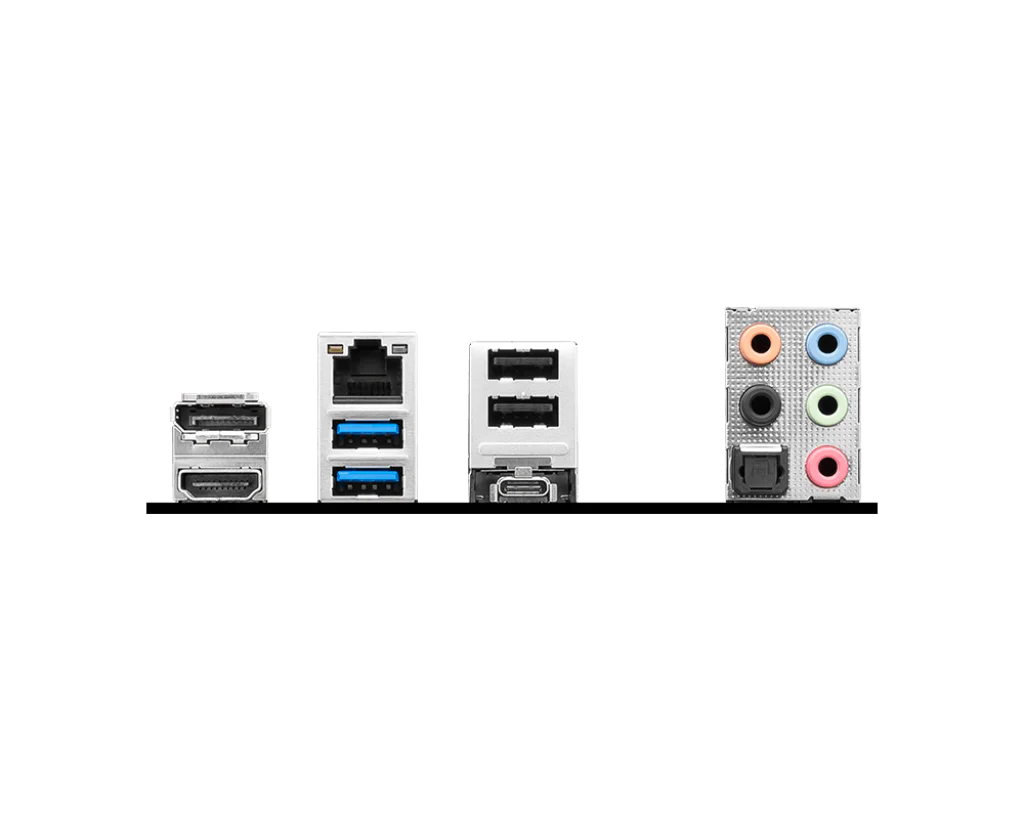

BACK PANEL PORTS	DisplayPort 2.5G LAN USB 2.0 Audio Connectors HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) S/PDIF-OUT
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
PCB Info	ATX 243.84mmx304.8mm
BOX CONTENT

$155.67

MSI Mainboard PRO B760-P DDR4 II—

$155.67

MSI Mainboard PRO B760-P DDR4 II—

$155.67

Product Information

Shipping & Returns

Description

PRO B760-P DDR4 II

Unterstützt Intel^® Core™, Pentium^® Gold und Celeron^® Prozessoren der 12., 13. und 14. Generation für LGA 1700 Sockel
Unterstützt DDR4 Arbeitsspeicher, Dual Channel DDR4 5333+MHz (OC)
Verbessertes Leistungs-Design: 12+1 DRPS with P-PAK, 8-pin + 4-pin CPU Stromanschlüsse, Core Boost, Memory Boostt
Premium Kühlleistung: Erweiteter Kühlkörper, MOSFET-Wärmeleitpads, zusätzliche Drossel-Wärmeleitpads und M.2 Shield Frozr sind für ein Hochleistungssystem und Non-Stop-Gaming ausgelegt
Hochwertige Leiterplatte: 6 Schichten PCB, hergestellt aus 2oz dickem Kupfer und Material auf Server-Niveau
Blitzschnelles Gaming: PCIe 4.0 Steckplätze, Lightning Gen 4 x4 M.2
Intel Turbo USB 3.2 Gen 2: Der Intel USB 3.2 Gen2 Controller sorgt für unterbrechungsfreie Verbindungen mit mehr Stabilität und schnellsten USB-Geschwindigkeiten.
2.5G LAN: Hochmoderne Netzwerklösung für den professionellen und multimedialen Einsatz. Bietet eine sichere, stabile und schnelle Netzwerkverbindung
UDIO BOOST: Erlebe ein intensives Gaming-Erlebnis mit Sound in Studioqualität

Chipset	INTEL B760
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile (XMP)
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	5x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 4x SATA 6G (Qty)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 1x USB 3.2 Gen2 Type C (Rear)
LAN	Realtek^® RTL8125BG 2.5G LAN
Audio	Realtek^® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	DisplayPort 2.5G LAN USB 2.0 Audio Connectors HDMI™ USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) S/PDIF-OUT
OPERATING SYSTEM	Support for Windows^® 11 64-bit, Windows^® 10 64-bit
PCB Info	ATX 243.84mmx304.8mm
BOX CONTENT

MSI Mainboard PRO B760-P DDR4 II

PRO B760-P DDR4 II

Product Information

Shipping & Returns

Description

PRO B760-P DDR4 II
